MX-12000
MX-12000 - Image 2

MX-12000

The MEDIORYX MX-12000 Multi Parameter Monitor is a comprehensive, high-performance patient monitoring system designed for versatility and clarity in clinical environments. It features a large 15.6-inch screen, multiple display modes, and monitors essential parameters including ECG, NIBP, SpO2, Temperature, and Respiration. With a built-in battery and multiple operational modes, it is built to support surgical, diagnostic, and routine monitoring needs.

Category
Document

Description

The MEDIORYX MX-12000 Multi Parameter Monitor is engineered to be a central hub for patient observation across various clinical scenarios. Its large, 15.6-inch high-resolution display provides exceptional viewing clarity, allowing medical teams to monitor vital signs with ease from a distance.

The monitor supports three distinct working modes—Monitoring, Surgery, and Diagnosis—each tailored to specific clinical requirements. It features multiple display layouts, including a Standard Interface, Large Font mode, and specialized views for ECG and parameter trends, ensuring the right information is always presented optimally.

It tracks a complete set of standard vital parameters: ECG, Non-Invasive Blood Pressure (NIBP), Blood Oxygen Saturation (SpO2), Pulse Rate, Temperature, and Respiration (RESP). Designed for continuous operation, it includes a high-capacity internal battery supporting up to three hours of use and offers VGA output for connection to larger external displays. Its modular design also supports a range of optional upgrades for expanded functionality.

Specifications

Display: 15.6 inch large screen
Modes: Monitoring, Surgery, Diagnosis
Display Views: Standard, Large Font, ECG Full Display, OXY, Tread Table, BP Trend
Connectivity: VGA output for external display
Battery: Built-in high capacity battery (up to 3 hours)
Standard Parameters: ECG, RESP, TEMP, NIBP, SPO2, PR
Optional Parameters: Recorder (Printer), Central Monitoring, Dual IBP, EtCO2, 12-lead ECG, Nelicor SpO2, SunTech NIBP

ECG
Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
Gain Settings: 2.5, 5.0, 10, 20 mm/mV
Heart Rate Range: 15-300 BPM (Adult), 15-350 BPM (Neonatal)
Heart Rate Accuracy: ±1%
ST Measurement Range: -2.0 to +2.0 mV
Sweep Speeds: 12.5, 25, 50 mm/s
Bandwidth: Diagnostic (0.05–130 Hz), Monitor (0.5–40 Hz), Surgery (1–20 Hz)

NIBP
Method: Oscillometry
Modes: Manual, Auto, STAT
Units: mmHg, kPa
Adult Range: SYS 40-280, DIA 10-225, MEAN 20-240 mmHg
Pediatric Range: SYS 40-220, DIA 10-160, MEAN 20-170 mmHg
Neonatal Range: SYS 40-135, DIA 10-100, MEAN 20-110 mmHg
Accuracy: ±5 mmHg

SpO2
Range: 0 to 100%
Resolution: 1%
Accuracy: 70%-100% (±2%)
Pulse Rate: 20-250 BPM

RESP
Method: Impedance Measurement
Adult Range: 10 to 120 BrPM
Pediatric/Neonatal Range: 7 to 150 BrPM
Accuracy: ±2 BrPM

Temperature
Range: 0 to 50 °C
Resolution: 0.1°C
Accuracy: ±0.1°C

Physical Specifications
Unit Size: 45 x 40 x 32 cm
Unit Weight: 5.7 kg

Standard Configuration

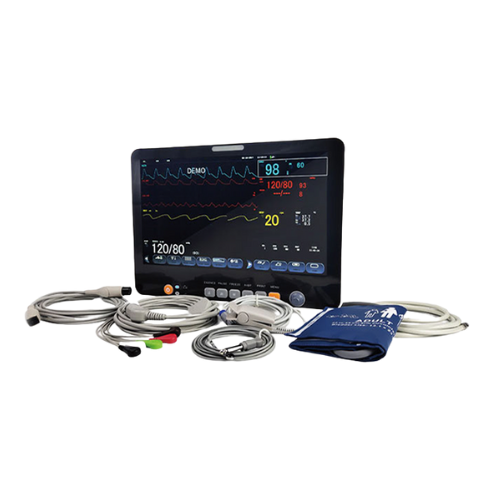

Main Unit, 5-lead ECG cable, Disposable ECG Electrodes (5), Adult SpO2 probe, Adult NIBP cuff, NIBP extension tube, Temperature probe, Power Cable, User Manual, Fuse (3).
